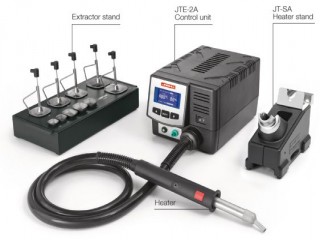

The JT is used for desoldering all types of SMDs.
Its powerful heater enables quick and safe desoldering of even the biggest QFPs and PLCCs. In addition, it desolders small and medium sized BGA’s in a very reduced time span.
Digital read-out temperature allows more precision and tool control.
The system, exclusive to JBC, uses extractors/protectors and hot air, to desolder in a quick, safe and clean way while protecting the surrounding components by concentrating the heat onto the IC.
A medium-sized QFP, for example, can be desoldered in 20 seconds.
The new button on the handle allows users to concentrate on the job without having to make unnecessary and time consuming movementsto turn the hot air on.

SPECIFICATIONS:
	Power: 900 W
	Temperature selection: T.Amb.-455°C (200-850º F)
	Air flow settings: 6-45 l/min
	Antistatic control box “skin effect”
	Weight of complete system: 8,7 kg (19,18 lbs)
	Self-contained air pump for hot-air with electronic control of temperature and air-flow.
	Vacuum pump for holding ICs
