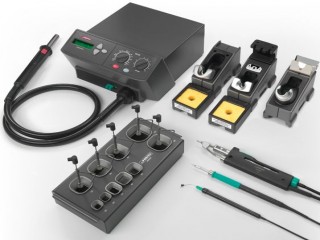

Station for rework and repair of through-hole and SMT boards. It contains 4 modules which cover the main rework tasks:

• Hot air to desolder any size of SMD component. The station uses the exclusive JBC system, based on protectors-extractors and hot-air flow, which makes desoldering safe, clean and quick, concentrating the heat on the IC, and protecting the rest of the circuit at the same time. A medium-sized SMD can be desoldered in less than 20 seconds. Additional information about the hot air section of this station.
• Desoldering SMTs and cleaning of through-hole components and pads by using the desoldering iron DR , The unit features a self-contained vacuum pump. In lieu of the soldering iron, the PA or HT hot tweezers can also connected.
• Pick & Place pencil by suction to aid components positioning.
• Soldering and desoldering of all types of components, with the swift response, high power and superb temperature recovery of the Advanced Series. It incorporates a second Sleep function that makes the station go into hibernation which means the station continues working without heating the tools. The minimum consumption state detects when a tool is picked up and it begins to heat up again.

The station is easily controllable thanks to the precise information display. All of the functions have an integrated password that allows you to adapt maximum functions for each user. Apart from the standard setup as shown, any of the JBC tools can be connected to both the soldering and desoldering modules; handpieces, desoldering iron, desoldering tweezeres or solder feed iron. In doing so, tools can be combined to set up the station to suit any specific task. The only limitation is that only one desoldering iron can be connected to the station.
