Accessories other

ACOT

Arms, balancer, connectors, etc.

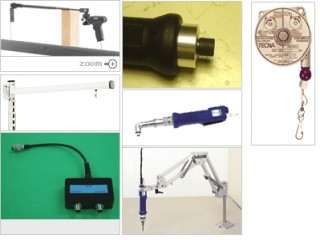

Braccio articolato Torque reaction arms DMFK90, code 010660, have been designed to eliminate the reaction generated by screwdrivers when they stop at the pre-set torque up to 15Nm. Options include vertical support.


Pluto KC05 002  KP05, code 234511/K, is an extension ring to be used with Pluto inline drivers for easier clamping on reaction arms.


Testina ad angolo  When space is limited a right angle head can be easily attached to lever start FAB or RAF screwdrivers. Model ANGHD1, code no. 010100, is suitable to FAB series, model ANGHD2. code no. 010102, is suitable to RAF series, model ANGHD3 to PLUTO series. The connection and torque adjusting nut is equipped with 2 x M3 threaded holes to lock the head in the desired position.


Sdoppiatore DOCK01  A double output connector, model DOCK01, code 020020, is also available for operators using two screwdrivers in tha same working area. One end of this device is to be connected to the controller (cable included), the other end to the drivers. The screwdrivers are not to be used at the same time


Bracci articolati  Torque reaction arms PA2KOL, code no. 010600, have been designed to eliminate the reaction generated by screwdrivers when they stop at the pre-set torque.
Options include table or wall mount, tool holders for inline, pistol or angle style tools.


BilanciatoriTool balancers TECBA1, code no. 010300, allow screwdrivers to be positioned over the work station for comfortable operation.
Models with capacity up to 200 kg available on request.
