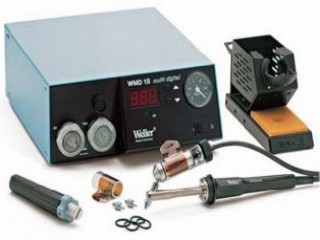

Desoldering station multi digital 175 W, 230 V, with internal pump
• 1 channel
• Digital controlled electronic for soldering, desoldering or
hot air tools tools up to 150 W
• Temperature range 50°C– 450°C (550°C with WSP 150)
• Max. vacuum -0,7 bar
• Calibration box WCB 2 (see page 160) may be connected for
CALIBRATION, LOCK OUT or OFFSET function
• Protection class 1
• Antistatic housing
• Equipotential bonding (normal state hard grounded)
• Automatic tool recognition
• Dimensions: 240 x 270 x 105 mm (W x L x H)
consists of:
005 33 286 99 WMD 1S Control unit 230 V
005 13 190 99 DSX 80 Desoldering iron 80 W, 24 V with nozzle DX 113HM
005 15 030 99 AK 20 Safety rest
005 13 142 00 DX 112 Nozzle
005 13 143 00 DX 113 Nozzle
005 13 500 99 Cleaning set
005 33 284 99 WMD 1S Control unit switchable 120 V / 240 V, with US plug
